Metal shelving /rack

Type 1(a) Simple Rack
 width 3' or 90cm,
depth 1.5' or 45cm



RM 227
3'W x 1.5'D x 5'H ft
90W x 45D x 150H cm
Model SR-3155


shelf HDF board

 RM 266
3'W x 1.5'D x 6'H ft
90W x 45D x 180H cm
Model SR-3156

  Loading capacity


RM 297
3'W x 1.5'D x 7'H ft
90W x 45D x 210H cm
Model SR-3157

200kg- 400kg /UDL leve

RM 399
3'W x 1.5'D x 8'H ft
90W x 45D x 240H cm
Model SR-3158

Type 1 (b) Simple Rack
width 3' or 90cm,
depth 2' or 60cm


 RM 257
3'W x 2'D x 5'H ft
90W x 60D x 150H cm
Model SR-3205


shelf HDF board


RM 296
3'W x 2'D x 6'H ft
90W x 60D x 180H cm
Model SR-3206

  Loading capacity

RM 317
3'W x 2'D x 7'H ft
90W x 60D x 210H cm

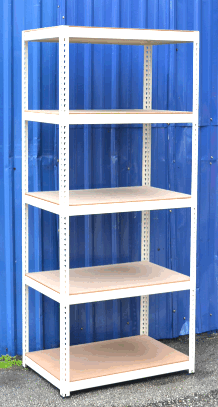

Model SR-3207

200kg- 400kg /UDL level

RM 439
3'W x 2'D x 8'H ft
90W x 60D x 240H cm
Model SR-3208

Type 1  (c) Simple Rack
width 4' or 120cm
depth 1.5' or 45cm



RM 303
4'W x 1.5'D x 5'H ft
120
W x 45D x 150H cm
Model SR-4155


shelf HDF board


 RM 329 3d_basic_buynow.gif
4'W x 1.5'D x 6'H ft
120
W x 45D x 180H cm
Model SR-4156

  Loading capacity

RM 359
4'W x 1.5'D x 7'H ft
120
W x 45D x 210H cm
Model SR-4157

200kg- 400kg /UDL level

RM 409
4'W x 1.5'D x 8'H ft
120
W x 45D x 240H cm
Model SR-4158

Type 1  (d) Simple Rack
width 4' or 120cm
depth 2' or 60cm



RM 333
4'W x 2'D x 5'H ft
120
W x 60D x 150H cm
Model SR-4205

shelf HDF board


RM 349
4'W x 2'D x 6'H ft
120
W x 60D x 180H cm
Model SR-4206

  Loading capacity


RM 399
4'W x 2'D x 7'H ft
120
W x 60D x 210H cm
Model SR-4207

200kg- 400kg /UDL level

RM 469
4'W x 2'D x 8'H ft
120
W x 60D x 240H cm
Model SR-4208

Type 1  (e) Simple Rack
width 5' or 150cm
depth 1.5' or 45cm



RM 319
5'W x 1.5'D x 5'H ft
150
W x 45D x 150H cm
Model SR-5155


shelf HDF board


RM 339
5'W x 1.5'D x 6'H ft
150
W x 45D x 180H cm
Model SR-5156

Loading capacity

RM 419
5'W x 1.5'D x 7'H ft
150
W x 45D x 210H cm
Model SR-5157

200kg- 400kg /UDL level

RM 469
5'W x 1.5'D x 8'H ft
150
W x 45D x 240H cm
Model SR-5158

Type 1  (f) Simple Rack
width 5' or 150cm
depth 2' or 60cm



RM 359
5'W x 2'D x 5'H ft
150
W x 60D x 150H cm
Model SR-5205


shelf HDF board



RM 379
5'W x 2'D x 6'H ft
150
W x 60D x 180H cm
Model SR-5206

Loading capacity

RM 465
5'W x 2'D x 7'H ft
150
W x 60D x 210H cm
Model SR-5207

200kg- 400kg /UDL level

RM 509
5'W x 2'D x 8'H ft
150
W x 60D x 240H cm
Model SR-5208

  Type 1 (h)Simple Rack
width 6' or 180cm
depth 1.5' or 45cm

RM 429
6'W x 1.5'D x 5'H ft
180
W x 45D x 150H cm
Model SR-6155


shelf HDF board


RM 449
6'W x 1.5'D x 6'H ft
180
W x 45D x 180H cm
Model SR-6156

Loading capacity

RM 500
6'W x 1.5'D x 7'H ft
180
W x 45D x 210H cm
Model SR-6157

200kg- 400kg /UDL level

RM 515
6'W x 1.5'D x 8'H ft
180
W x 45D x 240H cm
Model SR-6158

Type 1 (g)Simple Rack
width 6' or 180cm
depth 2' or 60cm

RM 479
6'W x 2'D x 5'H ft
180
W x 60D x 150H cm
Model SR-6205


shelf HDF board



RM 499
6'W x 2'D x 6'H ft
180
W x 60D x 180H cm
Model SR-6206

Loading capacity

RM 549
6'W x 2'D x 7'H ft
180
W x 60D x 210H cm
Model SR-6207

200kg- 400kg /UDL level

RM 595
6'W x 2'D x 8'H ft
180
W x 60D x 240H cm
Model SR-6208

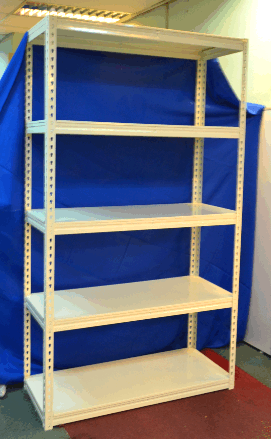

Type 2 (a) Simple Metal Rack
 width 3' or 90cm,
depth 1.5' or 45cm

RM 307 3d_basic_buynow.gif
3'W x 1.5'D x 5'H ft
90W x 45D x 150H cm
Model SMR-3155


shelf Metal rack


RM 346 3d_basic_buynow.gif
3'W x 1.5'D x 6'H ft
90W x 45D x 180H cm

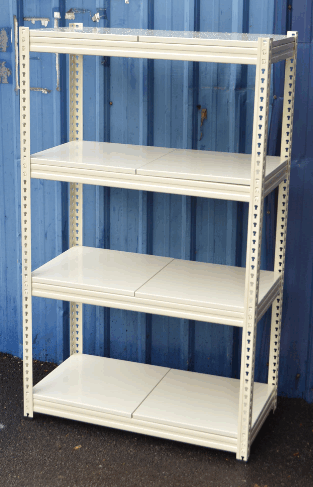

Model SMR-3156

Loading capacity

RM 437 3d_basic_buynow.gif
3'W x 1.5'D x 7'H ft
90W x 45D x 210H cm

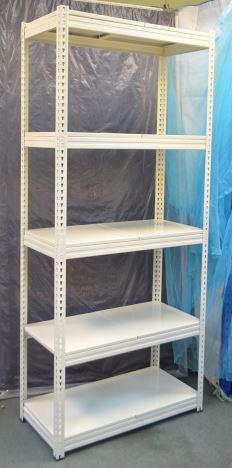

Model SMR-3157

200kg- 400kg /UDL level

 RM 485 3d_basic_buynow.gif
3'W x 1.5'D x 8'H ft
90W x 45D x 240H cm
Model SMR-3158

Type 2 (b) Simple Metal Rack
 width 3' or 90cm,
depth 2' or 60cm

RM 373 3d_basic_buynow.gif
3'W x 2'D x 5'H ft
90W x 60D x 150H cm
Model SMR-3205


shelf Metal rack


 RM 405 3d_basic_buynow.gif
3'W x 2'D x 6'H ft
90W x 60D x 180H cm
Model SMR-3206

Loading capacity

RM 5193d_basic_buynow.gif
3'W x 2'D x 7'H ft
90W x 60D x 210H cm
Model SMR-3207

200kg- 400kg /UDL level

RM 555 3d_basic_buynow.gif
3'W x 2'D x 8'H ft
90W x 60D x 240H 7cm
Model SMR-3208

Type 2 (c) Simple Metal Rack
 width 4' or 120cm,
depth 1.5' or 45cm


RM 373 3d_basic_buynow.gif
4'W x 1.5'D x 5'H ft
120
W x 45D x 150H cm
Model SMR-4155


shelf Metal rack


RM 415 3d_basic_buynow.gif
4'W x 1.5'D x 6'H ft
120
W x 45D x 180H cm

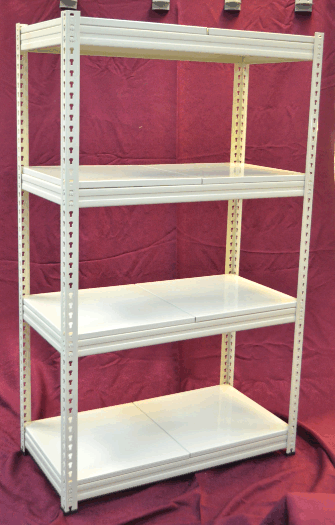

Model SMR-4156

  Loading capacity

RM 549 3d_basic_buynow.gif
4'W x 1.5'D x 7'H ft
120
W x 45D x 210H cm
Model SMR-4157

200kg- 400kg /UDL level

RM 580 3d_basic_buynow.gif
4'W x 1.5'D x 8'H ft
120
W x 45D x 240H cm
Model SMR-4158

Type 2 (d) Simple Metal Rack
 width 4' or 120cm,
depth 2' or 60cm

 RM 460 3d_basic_buynow.gif
4'W x 2'D x 5'H ft
120
W x 60D x 150H cm
Model SMR-4205


shelf Metal rack

 RM 505 3d_basic_buynow.gif
4'W x 2'D x 6'H ft
120
W x 60D x 180H cm
Model SMR-4206

  Loading capacity

RM 647 3d_basic_buynow.gif
4'W x 2'D x 7'H ft
120
W x 60D x 210H cm
Model SMR-4207

200kg- 400kg /UDL level

RM 690 3d_basic_buynow.gif
4'W x 2'D x 8'H ft
120
W x 60D x 240H cm
Model SMR-4208

Type 2 (e) Simple Metal Rack
 width 5' or 150cm,
depth 1.5' or 45cm

RM 499
5'W x 1.5'D x 5'H ft
150
W x 45D x 150H cm
Model SMR-5155


shelf Metal rack


RM 529
5'W x 1.5'D x 6'H ft
150
W x 45D x 180H cm
Model SMR-5156

Loading capacity

RM 619
5'W x 1.5'D x 7'H ft
150
W x 45D x 210H cm
Model SMR-5157

200kg- 400kg /UDL level

RM 699
5'W x 1.5'D x 8'H ft
150
W x 45D x 240H cm
Model SMR-5158

Type 2 (f) Simple Metal Rack
 width 5' or 150cm,
depth 2' or 60cm

RM 589
5'W x 2'D x 5'H ft
150
W x 60D x 150H cm
Model SMR-5205


shelf Metal rack



RM 619
5'W x 2'D x 6'H ft
150
W x 60D x 180H cm
Model SMR-5206

200kg- 400kg /UDL level

RM 755
5'W x 2'D x 7'H ft
150
W x 60D x 210H cm
Model SMR-5207

200kg- 400kg /UDL level

RM 819
5'W x 2'D x 8'H ft
150
W x 60D x 240H cm
Model SMR-5208

Type 2 (g) Simple Metal Rack
 width 6' or 180cm,
depth 1.5' or 45cm

RM 589
6'W x 1.5'D x 5'H ft
180
W x 45D x 150H cm
Model SMR-6155


shelf Metal rack


RM 615
6'W x 1.5'D x 6'H ft
180
W x 45D x 180H cm
Model SMR-6156

Loading capacity

RM 749
6'W x 1.5'D x 7'H ft
180
W x 45D x 210H cm
Model SMR-6157

200kg- 400kg /UDL level

RM 815
6'W x 1.5'D x 8'H ft
180
W x 45D x 240H cm
Model SMR-6158

Type 2 (h) Simple Metal Rack
 width 6' or 180cm,
depth 2' or 60cm

RM 689
6'W x 2'D x 5'H ft
180
W x 60D x 150H cm
Model SMR-6205


shelf Metal rack



RM 715
6'W x 2'D x 6'H ft
180
W x 60D x 180H cm
Model SMR-6206

200kg- 400kg /UDL level

RM 879
6'W x 2'D x 7'H ft
180
W x 60D x 210H cm
Model SMR-6207

200kg- 400kg /UDL level

RM 919
6'W x 2'D x 8'H ft
180
W x 60D x 240H cm
Model SMR-6208

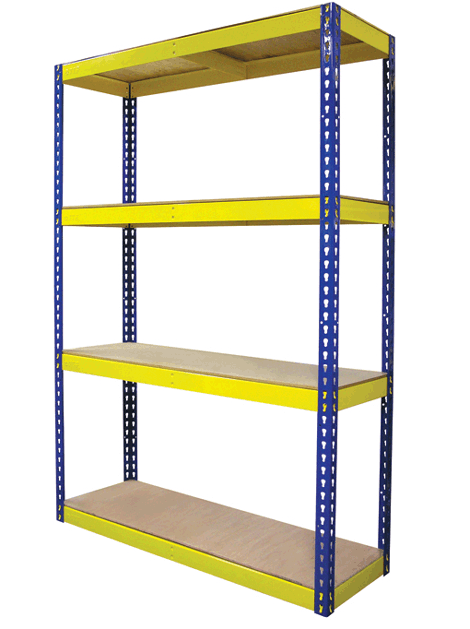

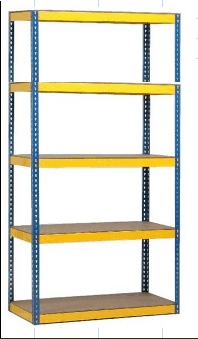

Type 3 Boltless Rack
 a) width 3' or 90cm


RM 233
3'W x 1.5'D x 5'H ft
90W x 45D x 150H cm
Model BR-3155



Shelf made of 8mm HDF board


 RM 267
3'W x 1.5'D x 6'H ft
90W x 45D x 180H cm
Model BR-3156



RM 273
3'W x 1.5'D x 7'H ft
90W x 45D x 210H cm
Model BR-3157


 Loading capacity

RM 300
3'W x 2'D x 5'H ft
90W x 60D x 150H cm
Model BR-3205


100kg- 800kg /UDL level

 RM 345
3'W x 2'D x 6'H ft
90W x 60D x 180H cm
Model BR-3206


RM 365
3'W x 2'D x 7'H ft
90W x 60D x 210H cm
Model BR-3207

Type 3 Boltless Rack
 b) width 4' or 120cm


RM 313
4'W x 1.5'D x 5'H ft
120
W x 45D x 150H cm
Model BR-4155



Shelf made of 8mm HDF board


RM 364
4'W x 1.5'D x 6'H ft
120
W x 45D x 180H cm
Model BR-4156



RM 418
4'W x 1.5'D x 7'H ft
120
W x 45D x 210H cm
Model BR-4157


 Loading capacity


RM 408
4'W x 2'D x 5'H ft
120
W x 60D x 150H cm
Model BR-4205


100kg- 800kg /UDL level


RM 462
4'W x 2'D x 6'H ft
120
W x 60D x 180H cm
Model BR-4206



RM 545
4'W x 2'D x 7'H ft
120
W x 60D x 210H cm
Model BR-4207


 UDL refers to Uniformly Distributed load

price exclude delivery and installation charges

 Cataloque with prices
Page43-metal shelving-p

  Cataloque without prices
Page43-metal shelving

  Summary of prices







Type 1 Simple Rack

Shelf made of 8mm HDF board

Loading capacity 200kg- 400kg /UDL level



Type 2 -Simple metal Rack

 Shelf made of 2 equal size metal plate
Loading capacity 200kg / UDL level

Type 3- Boltless

Shelf made of 8mm HDF board

Loading capacity 100kg- 800kg /UDL level

,Width (mm)
 Depth (mm)
 Height (mm)
  Shelves Level

900,1200
 450, 600
 1510, 1810, 2110
  4, 5, 6



,Width (mm)
 Depth (mm)
 Height (mm)
  Shelves Level

900,1200
 450, 600
 1510, 1810, 2110
  4, 5, 6

,Width (inch)
 Depth (inch)
 Height (inch)
  Shelves Level

30", 36", 48"
18"' 24", 30"
72", 84", 96"
  4, 5, 6

Width
900
900
900
900
900
900
1200
1200
1200
1200
1200
1200

Depth
450
600
450
600
450
600
450
600

450
600
450

600

Height
1500
1500
1800
1800
2100
2100
1500
1500
1800
1800
2100
2100

shelves
4
4
4
4
5
5
4
4
4
4
5

5

RM
227
257
266
296
297
317

303
333
299
319
359
399



Width
900
900
900
900
900
900
1200
1200
1200
1200
1200
1200

Depth
450
600
450
600
450
600
450
600

450
600
450

600

Height
1500
1500
1800
1800
2100
2100
1500
1500
1800
1800
2100
2100

shelves
4
4
4
4
5
5
4
4
4
4
5

5

RM
307
373
346
405
437
519
 373
 460
 415
474
549
645

Width
36"
36"
36"
36"
36"
36"
48"
48"
48"
48"
48"
48"

Depth
18"
24"
18"
24"
18"
24"
18"
24"
18"
24"
18"
24"

Height
60"
60"
72"
72"
84"
84"
60"
60"
72"
72"
84"
84"

shelves
4
4
4
4
5
5
4
4
4
4
5
5

RM
233
300
267
345
273
364
318
408
364
462
418
545




UDL refers to Uniformly Distributed load


price exclude delivery and installation charges

Type 5
Medium Duty Pallet shelving
1800mm Height,


 Plywood 12mm shelving


Loading capacity 1,000kg- 1,200kg /UDL level

Medium Duty Pallet shelving
2400mm Height


 Plywood 12mm shelving


Loading capacity 1,000kg- 1,200kg /UDL level

Medium Duty Pallet shelving- 3000mm Height

 Plywood 12mm shelving


Loading capacity 1,000kg- 1,200kg /UDL level

Width
1850
1850

2460
2460

Depth
600
900

600
900

Height
1800
1800

1800
1800

shelves
4
4

4
4

RM
855
970

1,090
1,335

Width
1850
1850

2460
2460

Depth
600
900

600
900

Height
2400
2400

2400
2400

shelves
5
5

5
5

RM
1,075
1,200

1,379
1,679

Width
1850
1850

2460
2460

Depth
600
900

600
900

Height
3000
3000

3000
3000

shelves
5
5

5
5

RM
1,135
1,279

1,429
1,737

   Pallet shelving-loading 1,000kg- 1,200kg /UDL level

  RM 855 3d_basic_buynow.gif
6'W x 2'D x 6'H ft
180
W x 60D x 180H cm,Model PS-6206

Optional -linking bracket

RM 15 3d_basic_buynow.gif
7.5L x 6.0W cm, Model BR-1

click here for catalog
page 89-steel shelving


 click here for catalog with price
page 89-steel shelving



1) Direct sales enquiry to
012-389 2733 K K Wong

017-225 2733 Ms Lee or

Wholesale Showroom tel no
   03- 4042 6827, 03-4042 1144
Factory tel no
03-6189 9615 or 03-6189 9616
Home


2) by email
enquiry@afiah.com.my or
afiahof@gmail.com
3
) by whats app
012-389 2733
017-285 2739
017-336 2987


Enquiries

3d_basic_order.gif   Procedure
1) Online order  via
secured Pay Pal services

2) Non online order
 and payment procedure


 We accept

 Online


Afia Manufacturing Sdn Bhd
Reg no  201701028392 (1242558-X)
Wholesale Showroom:
No: 16, Jalan Cemur off Jalan Tun Razak,
50400 Kuala Lumpur, Malaysia
click here for map
Factory:
Lot: 46069 Jln Bacang Off Jln Sg. Tua,
68100 Batu Caves, Selangor, Malaysia

click here for map
